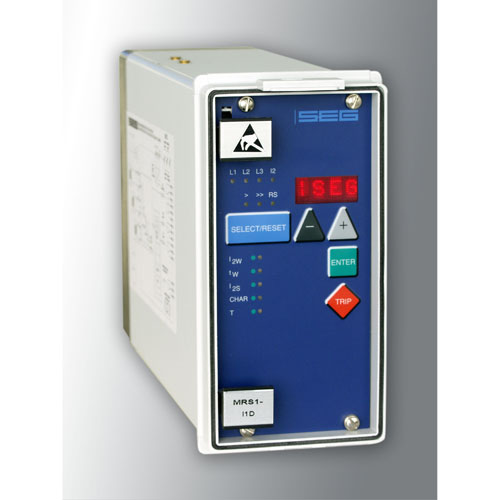

The MRS1 relay is a negative sequence protection relay with universal application. It serves for negative sequence protection of three-phase generators.
Meer informatie| Producttype | Generator beveiliging, Mono functie |
|---|---|
| Serie | HighTECH |
With a large number of different tripping characteristics and adjustment possibilities, the tripping characteristic can be made suitable for almost every type of generator with regard to its special thermal time-constant.
There is a choice between an independent or an inverse time tripping characteristic. In case of low unbalanced load, a warning is given after an adjustable time delay. In case of inadmissible high unbalanced load, the MRS1 relay trips in accordance with the set characteristic.
Features
• Digital filtering of the measured values by using discrete Fourier analysis to suppress the high frequency harmonics and DC components caused by faults or system operations
• Selectable protective functions between: definite time over current protection and inverse time over current protection
• Consideration of the thermal constant of the generator
• Storage of trip values
A universal mains decoupling device covering all the protection functions required by VDEW and most other utilities for mains parallel operation of power stations.
Compact netontkoppelrelais voor aggregaten
Bewaakt vectorsprong en fasevolgorde
Zelfbewaking en testknop
Bouwbreedte 65mm
ANSI 78V
Compacte netwachter voor wisselspanning
Gescheiden instelbereik en geen hulpspanning benodigd
Bouwbreedte 65mm
ANSI 27, 59
The XRW-1 protection relay supervises mains voltage and mains frequency in compliance with the GridCodes, the grid connection rules and the operator guidelines.
